1-1/2" Explosion Proff Air Impact Wrench w/ 2" Anvil

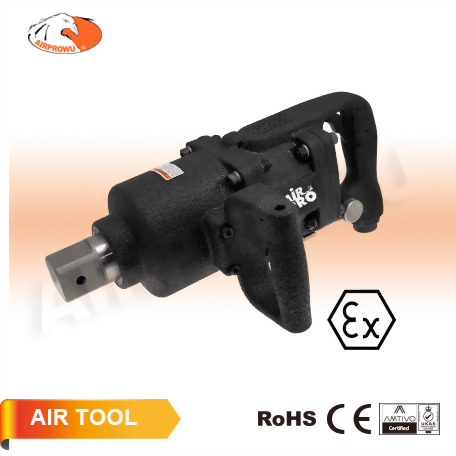

SA2509EX-2I 1-1/2" Inside Trigger
Explosion Proff Air Impact Wrench
w/ 2" Anvil
● CE Ex
I M2 Ex h I Mb
II 2G Ex h IIB T6 Gb X
II 2D Ex h IIIB T85°C Db X
0°C S Ta S 40°C
● EXPLOSION-PROOF coating on the tool surface.
● High usage and reliable work perforamce design.
● Safety regulation to 2014/34/EU(ATEX) EN ISO 80079-37:2016
● Stepless Trigger
● 6 Position Power Regulator
● Twin Hammer
● Bolt Capacity: 1-3/4" (45mm)
● Working Torque: 2,300-4,000 ft-lb (3,585-6,200 Nm)
● Max. Torque: 2,200 ft-lb (2,983 Nm)
SA2509EX-2I 1-1/2" Inside Trigger
Explosion Proff Air Impact Wrench
w/ 2" Anvil
|
Model No. |
Square |
Max. Torque |
Free |
Air Cons. |
Net Weight |
Overall |
Air |
Air |
Hose |
Sound |
||||||
|
四方頭 |
最大扭力 |
無負載轉速 |
耗氣量 |
重量 |
長度 |
進氣口 |
空氣壓力 |
氣管 |
噪音值 |
|||||||
|
Inch |
ft-lb |
N-m |
R.P.M |
CFM |
L/min |
lb |
kg |
Inch |
mm |
NPT(PT) |
psi |
bar |
Inch |
mm |
dB (A) |
|
|
SA2509EX-2O(I) |
1-1/2 |
4100 |
6400 |
4,300 |
21.1 |
600 |
31.53 |
14.30 |
15.04 |
382 |
1/2" |
90 |
6.2 |
3/4 |
19 |
108 |
