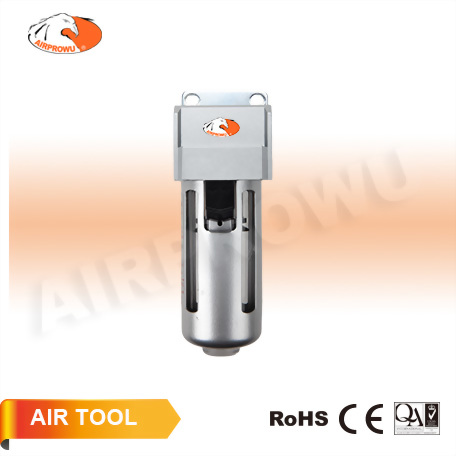

1/2" Air Filter
modelo :
F524
F524 NEW
1/2" Air Filter

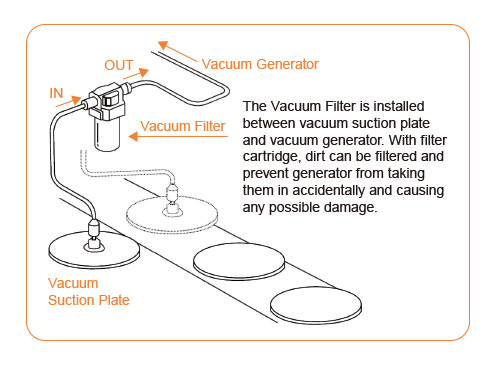

● The negative pressure design can effectively filter the
impurities and water generated by the vacuum generator
to prevent the system from being polluted.
● Steel guards offer good protection.
● Strong latching device to firm installation.
Application
● Vacuum Pump
● Vacuum Chuck
● Dust-free Room
● Vacuum Packing Machine
● Vacuum Drying Oven
● Vacuum Sealer
1/2" Air Filter
● The negative pressure design can effectively filter the
impurities and water generated by the vacuum generator
to prevent the system from being polluted.
● Steel guards offer good protection.
● Strong latching device to firm installation.
Application
● Vacuum Pump
● Vacuum Chuck
● Dust-free Room
● Vacuum Packing Machine
● Vacuum Drying Oven
● Vacuum Sealer
F524 NEW
1/2" Air Filter
● Medium: Air
● Port Size: 1/2"
● Body Material: Zinc alloy
● Filter Element: 5µ
● Working Pressure Range: -0.1 - 10Bar
● Proof Input Pressure: 15Bar (1.5Mpa / 218PSI)
● Operation Temperature Range: -0 - 60°C
1/2" Air Filter
● Medium: Air
● Port Size: 1/2"
● Body Material: Zinc alloy
● Filter Element: 5µ
● Working Pressure Range: -0.1 - 10Bar
● Proof Input Pressure: 15Bar (1.5Mpa / 218PSI)
● Operation Temperature Range: -0 - 60°C
