1/2" Angle Air Impact Wrench
1/2" Angle Air Impact Wrench
● Twin Hammer Mechanism
● 360º Swivel Exhaust
● Double Air Intake System
● Working Torque: 332 ft-lb (450 Nm)
● Bolt Capacity: 1/2" (13 mm)
1/2" Angle Air Impact Wrench
● Packing: 10pcs/CTN/ 15.2kg/16.2kg/0.9'
|
Model No. |
Square |
Air Cons. |
Max. Torque |
Free |
Air Inlet |
Air Pressure |
Hose Size |
Overall |
Net |
||||||
|
四方頭 |
耗氣量 |
最大扭力 |
無負載轉速 |
進氣口 |
空氣壓力 |
氣管 |
長度 |
重量 |
|||||||
|
Inch |
CFM |
L/min |
ft-lb |
N-m |
R.P.M |
NPT(PT) |
psi |
bar |
Inch |
mm |
Inch |
mm |
lb |
kg |
|
|
SA22165 |
1/2 |
4 |
113 |
369 |
500 |
8,000 |
1/4" |
90 |
6.3 |
3/8 |
10 |
3.35 |
85 |
2.95 |
1.34 |

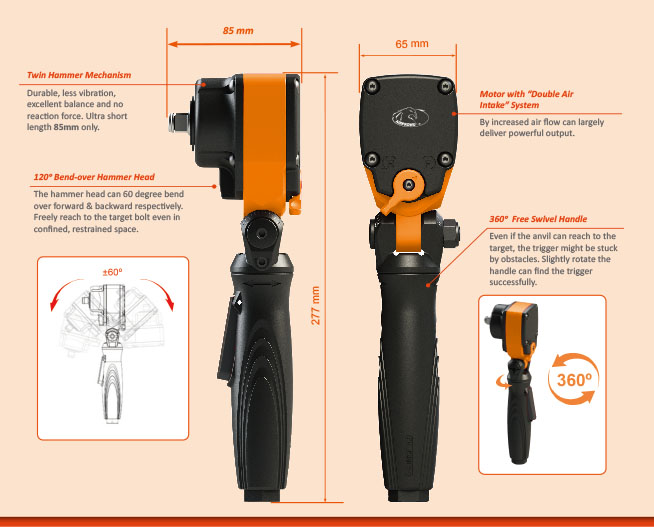

1/2" Angle Air Impact Wrench
● Patented Technology "Double Air Intake"
Reshape air motor construction to Double-Air-Intake and Double-Air-Exhaust,
largely increase air intake and rapidly exhaust after work. Significantly improve rotor
efficient to high peak.
● Speed Controllable Trigger
Ensure the Anvil working steadily, prevents bolts from damage.
● Aluminum Housing
Aluminum housing gives hammer kit a very rugged & robust protection.
● Ergonomic Handle
Plastic & ergonomic design for lightweight, anti-slip, better grip and no sweat on handle operation.
● Low Sound Level
Hindden muffler can greatly decrease working noise.
● Angle Regulator
The angle of hammer head can be adjusted or fixed by the regulator as required.
1/2" Angle Air Impact Wrench
● Mainly aim for working in confined space where with obstacles, like gearbox, engine,
transmission, farming cultivator and so on.
