1/2" No Reaction Arm Pulse Torque Wrench w/ Torque Controller
modelo :
SA22209-TC
SA22209-TC 1/2"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Twin Hammer Mechanism
● Free Speed: 9,000 RPM
● Max. Torque: 111-258 ft-lb (150-350 Nm)
Torque Controller
● L x W x H: 43 x 20 x 45 cm
● Weight: 6 kg (13.23 lb)
Torque traceability system description
● Principle: Traceable calibration according to ISO6789 Standard

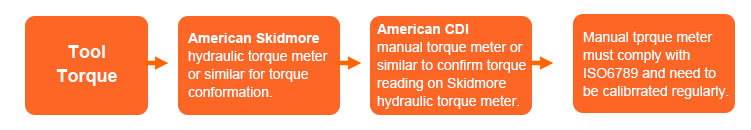

- Flow chart:
● Reminder: Please calibrate the tool according to the ISO6789 standard and calibrate regularly!
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Twin Hammer Mechanism
● Free Speed: 9,000 RPM
● Max. Torque: 111-258 ft-lb (150-350 Nm)
Torque Controller
● L x W x H: 43 x 20 x 45 cm
● Weight: 6 kg (13.23 lb)
Torque traceability system description
● Principle: Traceable calibration according to ISO6789 Standard
- Flow chart:
● Reminder: Please calibrate the tool according to the ISO6789 standard and calibrate regularly!
SA22209-TC 1/2"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
Torque Controller
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
|
Model No. |
Square |
Free Speed |
Max Torque |
Length |
Net Weight |
Air |
|||
|
四方頭 |
無負載轉速 |
最大扭力 |
長度 |
重量 |
進氣口 |
||||
|
Inch |
R.P.M |
ft-lb |
N-m |
Inch |
mm |
lb |
kg |
NPT(PT) |
|
|
SA22209-TC |
1/2 |
9,000 |
111-258 |
150-350 |
7.48 |
190 |
4.83 |
2.19 |
1/4" |
Torque Controller
SA22209-TC 1/2"
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Precise torque control
● Visible torque reading and easy operation
● No Reaction arm required
● No hydraulic pump required
No Reaction Arm Pulse Torque Wrench
w/ Torque Controller
● Precise torque control
● Visible torque reading and easy operation
● No Reaction arm required
● No hydraulic pump required
SA22209-TC 1/2"
Pulse Torque Wrench
w/ Torque Controller
Pulse Torque Wrench
w/ Torque Controller
