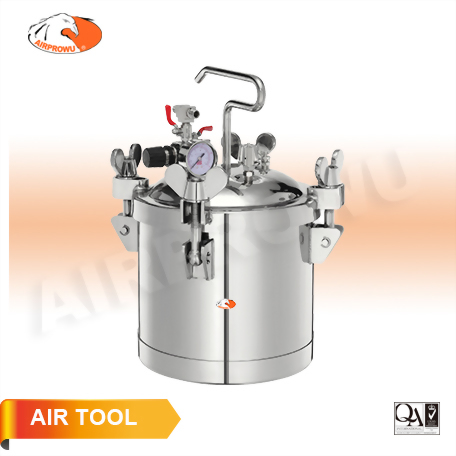

2-1/2 Gallon (10 Liter) Stainless Steel Pressure Tank Top Fluid Outlet No Agitator
modelo :
PT-10HSS
PT-10HSS
2-1/2 Gallon (10 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Applied for: Waterborne / Glue / High-viscosity / Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
2-1/2 Gallon (10 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Applied for: Waterborne / Glue / High-viscosity / Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
PT-10HSS
2-1/2 Gallon (10 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Working pressure 4.1 Bar/ 7 Bar
● Lid: T: 3.5mm / I.D.: 280mm / O.D.: 289.1mm
● Body: T: 2.0mm / h: 220mm /
H: 238.5mm / I.D.: 264mm / O.D.: 268mm
● Dimension: 290 x 290 x 436mm
● 11.9/12.9KGS/1.6'
2-1/2 Gallon (10 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Working pressure 4.1 Bar/ 7 Bar
● Lid: T: 3.5mm / I.D.: 280mm / O.D.: 289.1mm
● Body: T: 2.0mm / h: 220mm /
H: 238.5mm / I.D.: 264mm / O.D.: 268mm
● Dimension: 290 x 290 x 436mm
● 11.9/12.9KGS/1.6'
