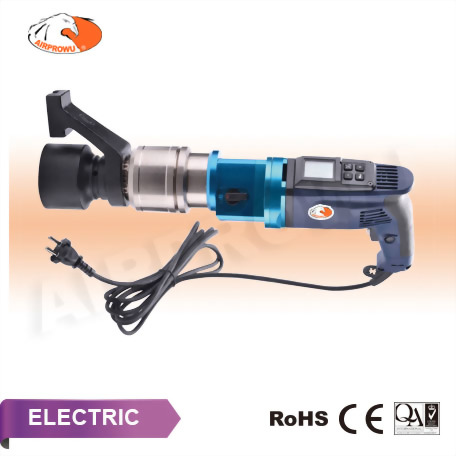

2-1/2" Straight Handle Electric Torque Wrench
modelo :
SEIW22150S
SEIW22150S 2-1/2"
Straight Handle Electric Torque Wrench
● Wide voltage motor: 220 ~240 V, 50~60 Hz single-phase AC
● Two twist mode, directly set the torque value or the system recommends the torque
value according to the bolt parameters
● Human machine interface, the LCD screen directly displays the torque value,no need to
check the “torque comparison table” for analog conversion
● Double overload protection, electronic anti-torsion system and torque overload clutch
to effectively protect the transmission components
● Two-speed design, the wrench can be switched between high and low speeds to
improve work efficiency
Straight Handle Electric Torque Wrench
● Wide voltage motor: 220 ~240 V, 50~60 Hz single-phase AC
● Two twist mode, directly set the torque value or the system recommends the torque
value according to the bolt parameters
● Human machine interface, the LCD screen directly displays the torque value,no need to
check the “torque comparison table” for analog conversion
● Double overload protection, electronic anti-torsion system and torque overload clutch
to effectively protect the transmission components
● Two-speed design, the wrench can be switched between high and low speeds to
improve work efficiency
SEIW22150S 2-1/2"
Straight Handle Electric Torque Wrench
Contents
● 1PC Electric Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
Straight Handle Electric Torque Wrench
Contents
● 1PC Electric Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
|

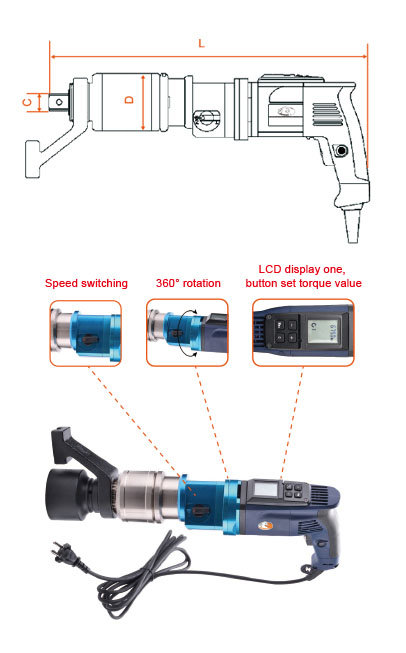

Model No. |
Torque |
Wide Voltages |
Square |
Outer |
Length |
No-load |
Weight |
Packing |
|
|
Nm |
V |
Hz |
C (Inch) |
D (mm) |
L (mm) |
R.P.M |
kg |
Set/ Ctn/ G.W/ N.W/ Cuft (kgs) |
|
|
SEIW22150S |
3500-15000 |
220-240 |
50-60 |
2-1/2 |
175 |
650 |
1.0 |
25.5 |
1/Ctn/ 44.0 / 43.0/ 1.45' |
