3/8" Double Diaphragm Pump

modelo : HAD-5R/ HAD-8R

cantidad :

Descripción
Especificaciones

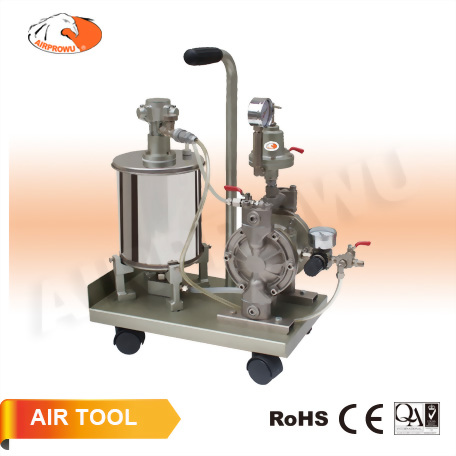

HAD-5R 4L Pot
3/8" Double Diaphragm Pump
(w/ 1/12 HP Motor & Low Pressure Fluid Regulator)

● Air Motor: 1/12 HP (AM-01)
● Pot Capacity: 4 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 12.0/ 13.6 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE

HAD-8R 8L Pot
Double Diaphragm Pump
(w/ 1/12 HP Motor & Low Pressure Fluid Regulator)

● Air Motor: 1/12 HP (AM-01)
● Pot Capacity: 8 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 12.7/ 14.3 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE

HAD-5R 4L Pot
HAD-8R 8L Pot
3/8" Double Diaphragm Pump
(w/ 1/12 HP Motor & Low Pressure Fluid Regulator)

● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2)
10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
