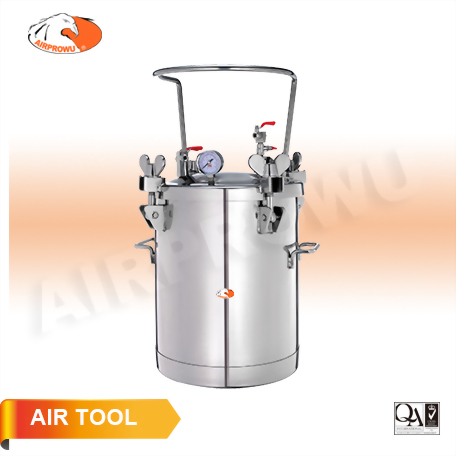

5 Gallon (20 Liter) Stainless Steel Pressure Tank Top Fluid Outlet No Agitator
modelo :
PT-20HSS
PT-20HSS
5 Gallon (20 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Applied for: Waterborne / Glue / High-viscosity / Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
5 Gallon (20 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Applied for: Waterborne / Glue / High-viscosity / Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
PT-20HSS
5 Gallon (20 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Working pressure 4.1 Bar/ 7 Bar
● Lid: T: 5mm / I.D.: 333.1mm / O.D.: 345.3mm
● Body: T: 2.0mm / h: 400mm /
H: 413mm / I.D.: 317.5mm / O.D.: 321.5mm
● Dimension: 350 x 405 x 675mm
● 19.1/21.1KGS/3.7'
5 Gallon (20 Liter) Stainless Steel Pressure Tank
Top Fluid Outlet No Agitator
● Working pressure 4.1 Bar/ 7 Bar
● Lid: T: 5mm / I.D.: 333.1mm / O.D.: 345.3mm
● Body: T: 2.0mm / h: 400mm /
H: 413mm / I.D.: 317.5mm / O.D.: 321.5mm
● Dimension: 350 x 405 x 675mm
● 19.1/21.1KGS/3.7'
