9/32" Air Hydraulic Riveter (Peel Type Rivet)
modelo :
SA8820-PEEL
SA8820-PEEL 9/32"
Air Hydraulic Riveter
(Peel Type Rivet)
● Rivet capacity:
5/32"(4.0mm), 3/16"(4.8mm),1/4" (6.3mm), 9/32"(7.1mm)
● Materials: Aluminum
Optional

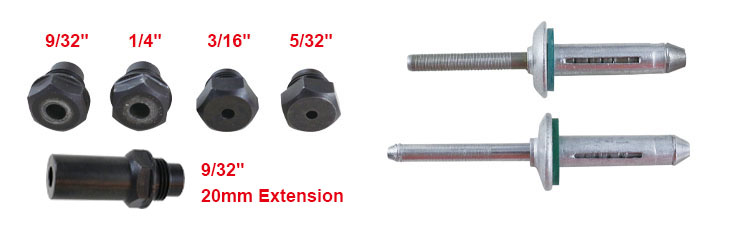

● 3/16" & 1/4" Nosepiece For *Monobolt
● 3/16" & 1/4" Nosepiece For *Magna-Lok
● 9/32" 20mm Extension Nosepiece (SA8820-PEEL-P1ELD)
Air Hydraulic Riveter
(Peel Type Rivet)
● Rivet capacity:
5/32"(4.0mm), 3/16"(4.8mm),1/4" (6.3mm), 9/32"(7.1mm)
● Materials: Aluminum
Optional
● 3/16" & 1/4" Nosepiece For *Monobolt
● 3/16" & 1/4" Nosepiece For *Magna-Lok
● 9/32" 20mm Extension Nosepiece (SA8820-PEEL-P1ELD)
SA8820-PEEL 9/32"
Air Hydraulic Riveter
(Peel Type Rivet)
Air Hydraulic Riveter
(Peel Type Rivet)
|
Model No. |
Rivet Capacity |
Traction Power |
Stroke Length |
Net Weight |
Air Inlet |
Air Pressure |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
Inch |
mm |
lb |
kg |
Inch |
psi |
bar |
|
|
SA8820-PEEL |
9/32 |
7.1 |
5,500 |
2,500 |
0.88 |
23 |
8 |
3.6 |
1/4 |
60-90 |
4.1-6.2 |
SA8820-PEEL 9/32"
Air Hydraulic Riveter
(Peel Type Rivet)
Air Hydraulic Riveter
(Peel Type Rivet)
