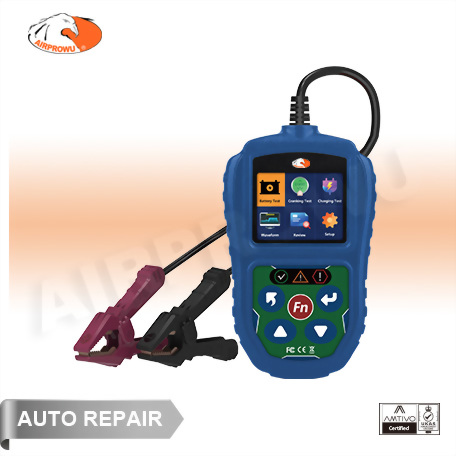

Color Screen 6V & 12V Battery Tester
modelo :
ADT-00121FC
ADT-00121FC NEW 0725
Color Screen 6V & 12V Battery Tester
● Test the 12V/6V Lead-acid Battery CCA (cold cranking amps)/
internal resistance/voltage/state of charge/state of health.
● Test the 24V/12V vehicle starting system and charging system.
● Print test results by connecting to a computer via USB cable.
● Real-time voltage curve graphic display,
can be saved up to 120 seconds and played back.
● Can save up to 1400 historical test records,
including battery test, starting test,
charging test and voltage curve, 350 each.
● One-key quick test function for batch battery
continuous test or real-time voltage curve.
● Built-in LED lights for battery and system status.
● Built-in protection of short circuit and reverse connection.
Color Screen 6V & 12V Battery Tester
● Test the 12V/6V Lead-acid Battery CCA (cold cranking amps)/
internal resistance/voltage/state of charge/state of health.
● Test the 24V/12V vehicle starting system and charging system.
● Print test results by connecting to a computer via USB cable.
● Real-time voltage curve graphic display,
can be saved up to 120 seconds and played back.
● Can save up to 1400 historical test records,
including battery test, starting test,
charging test and voltage curve, 350 each.
● One-key quick test function for batch battery
continuous test or real-time voltage curve.
● Built-in LED lights for battery and system status.
● Built-in protection of short circuit and reverse connection.
ADT-00121FC NEW 0725
Color Screen 6V & 12V Battery Tester
● Language: English, French, Dutch, German, Spanish,
ltalian, Chinese, Japanese, Korean, Russian,
Portuguese, Polish and Finnish
● Available: All 12V & 6V lead-acid
(car, truck, motorcycle, boat) engine starting batteries:
Regular Flooded, AGM, GEL, EFB
● Test Standard and Range:
JIS(26A17-245H528) DIN/IEC(20-1400),
GB(2-220Ah) CCA/BCI/CA/MCA/EN/SAE(20-2000)
● Input Voltage: 5-32V DC
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● Storage Temperature: -20℃~70℃ (-4℉~158℉)
● Display: Large, 2.0" TFT color screen
Color Screen 6V & 12V Battery Tester
● Language: English, French, Dutch, German, Spanish,
ltalian, Chinese, Japanese, Korean, Russian,
Portuguese, Polish and Finnish
● Available: All 12V & 6V lead-acid
(car, truck, motorcycle, boat) engine starting batteries:
Regular Flooded, AGM, GEL, EFB
● Test Standard and Range:
JIS(26A17-245H528) DIN/IEC(20-1400),
GB(2-220Ah) CCA/BCI/CA/MCA/EN/SAE(20-2000)
● Input Voltage: 5-32V DC
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● Storage Temperature: -20℃~70℃ (-4℉~158℉)
● Display: Large, 2.0" TFT color screen
