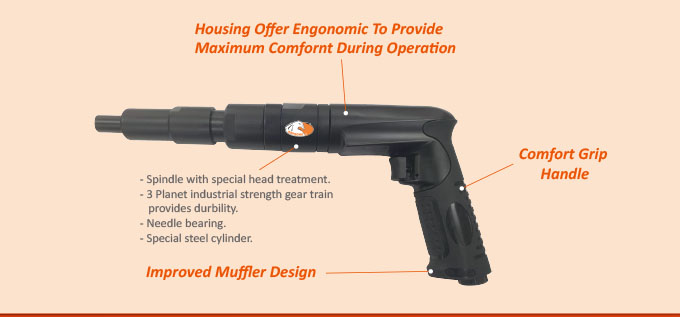

Composi-Lok Master Torque Driver
SA8319NR Forward
Composi-Lok Master Torque Driver
w/o Nose Adaptor
● Free Speed: 500 RPM
● Motor: 1 HP
● Sound Level: 75 d(BA)
● Torque Output: 230 in-lbs (26 Nm)
SA8319NR Forward
Composi-Lok Master Torque Driver
w/o Nose Adaptor
● Packing: 10pcs/ 18 kg(G.W)/ 1.5' Cuft
|
Model |
Motor |
Free |
Net |
Overall |
Air |
Air |
Hose |
Air |
|||||
|
馬達 |
無負載轉速 |
重量 |
長度 |
進氣口 |
空氣壓力 |
氣管尺寸 |
耗氣量 |
||||||
|
HP |
R.P.M |
lb |
kg |
Inch |
mm |
NPT(PT) |
psi |
bar |
Inch |
mm |
CFM |
L/min |
|
|
SA8319R |
1 | 500 | 3.75 | 1.7 | 12.6 | 320 | 1/4" | 90 | 6.2 | 3/8 | 10 | 4 | 113 |
|
SA8319NR |
1 |
500 |
3.75 |
1.7 |
12.6 |
320 |
1/4" |
90 |
6.2 |
3/8 |
10 |
4 |
113 |

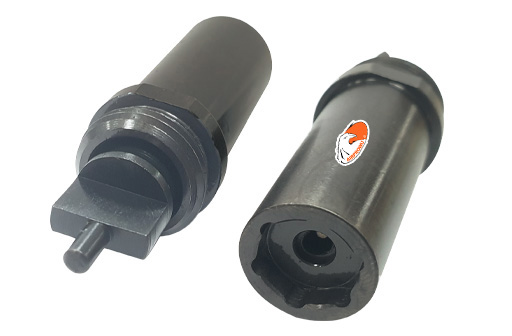

Optional Nose Adaptor Assembly
SA8319-NA532P Pin Dia. 5/32"
SA8319-NA316P Pin Dia. 3/16"
SA8319-NA14P Pin Dia. 1/4"
SA8319-NA516P Pin Dia. 5/16"

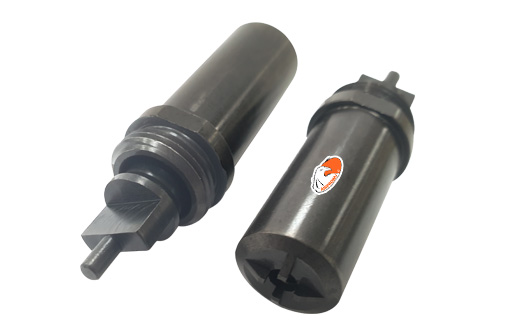

Nose Adaptor Assembly
w/ Protruding Nose & Driver
SA8319-NA532 Pin Dia. 5/32"
SA8319-NA316 Pin Dia. 3/16"
SA8319-NA14 Pin Dia. 1/4"
SA8319-NA516 Pin Dia. 5/16"
Nose Adaptor Assembly
w/ Flush Nose & Driver
SA8319-NA532PN 5/32"
SA8319-NA316PN 3/16"
SA8319-NA14PN 1/4"
SA8319-NA516PN 5/16"
Protruding Nose
SA8319-NA532N 5/32"
SA8319-NA316N 3/16"
SA8319-NA14N 1/4"
SA8319-NA516N 5/16"
Flush Nose
SA8319-NA532D 5/32"
SA8319-NA316D 3/16"
SA8319-NA14D 1/4"
SA8319-NA516D 5/16"
Driver
