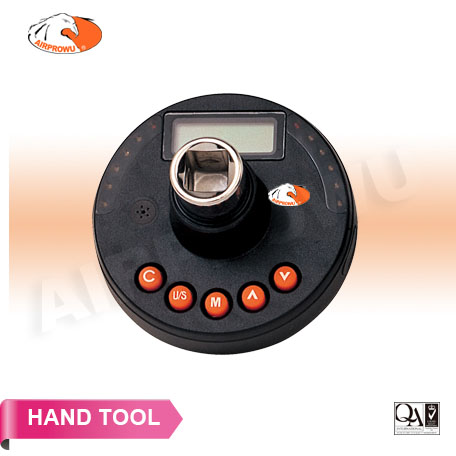

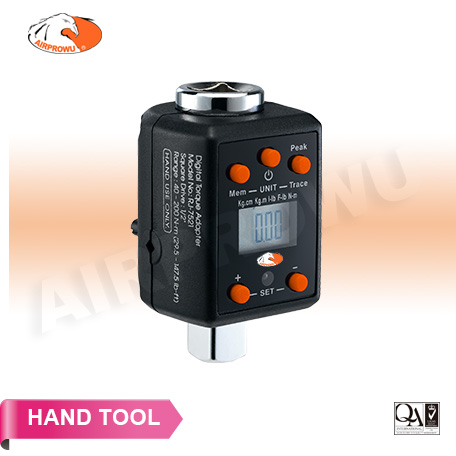

Digital Torque Adapter
Digital Torque Adapter
● Accuracy: DTA-7541W: C.W: ±4%, C.C.W: ±6% ; DTA-7583W: C.W: ±3%, C.C.W: ±4% ;
DTA-7521W1, DTA-7521W2, DTA-11043W: C.W: ±2%, C.C.W: ±3%
● Resolution: DTA-7541W, DTA-7583W, DTA-7521W1, DTA-7521W2: 0.1Nm ;
DTA-11043W: 1Nm ● Memory: 50 ● Unit: DTA-7541W, DTA-7583W, DTA-7521W1,
DTA-7521W2: 5 (Nm, Lb-ft, Lb-in, Kg-m, Kg-cm) ; DTA-11043W: 3 (Nm, Lb-ft, Kg-m)
● Mode: Track / Peak ● Battery: DTA-7541W, DTA-7583W, DTA-7521W1, DTA-7521W2: AAA x 2PCS ;
DTA-11043W: AA x 2PCS ● Battery Life: 50 hours ● Auto Shout Off: 85 seconds
|
ITEM NO. |
Square |
Display Range |
Alarm Range |
Accuracy Range |
Length |
Weight |
||||
|
Nm |
Lb-ft |
Nm |
Lb-ft |
Nm |
Lb-ft |
mm |
kg |
|||
|
DTA-7541W |
1/4" |
0.3 - 30 |
0.2 - 22.1 |
1.5 - 30 |
1.1 - 22.1 |
6 - 30 |
4.4 - 22.1 |
75 |
0.13 |
|
|
DTA-7583W |
3/8" |
1.3 - 135 |
1.0 - 99.6 |
6.7 - 135 |
4.9 - 99.6 |
27 - 135 |
19.9 - 99.6 |
75 |
0.2 |
|
|
DTA-7521W1 |
1/2" |
2 - 200 |
1.5 - 147.6 |
10 - 200 |
7.4 - 147.6 |
40 - 200 |
29.5 - 147.6 |
75 |
0.215 |
|
|
DTA-7521W2 |
1/2" |
3.4 - 340 |
2.5 - 250.9 |
17 - 340 |
12.5 - 250.9 |
68 - 340 |
50.2 - 250.9 |
75 |
0.215 |
|
|
DTA-11043W |
3/4" |
8 - 800 |
5.9 - 590 |
40 - 800 |
29.5 - 590 |
160 - 800 |
118.1 - 590 |
100 |
0.55 |
|
