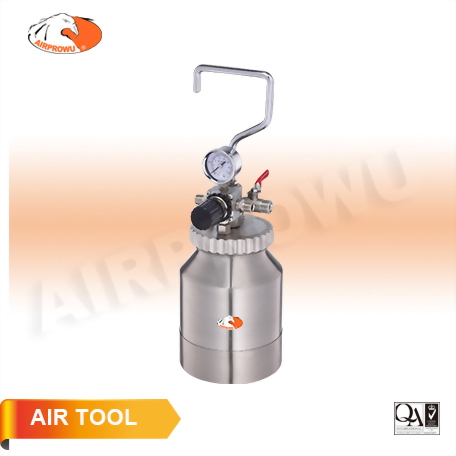

Economy 1.6 Liter Stainless Steel Pressure Pots
modelo :
AT-1HSS
AT-1HSS
Economy 1.6 Liter Stainless
Steel Pressure Pots
● Applied for: Waterborne / Glue / High-viscosity / Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
Economy 1.6 Liter Stainless
Steel Pressure Pots
● Applied for: Waterborne / Glue / High-viscosity / Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
AT-1HSS
Economy 1.6 Liter Stainless
Steel Pressure Pots
● Max.working pressure 2.4 Bar (35 psi)
● Fluid outlet 3/8"
● Air inlet 1/4"
● Lid & pot made by SUS 304 STAINLESS STEEL
● Lid & pot thickness (6 &1.2 mm )
● Lid outside & inside size (104 & 93 mm)
● Body H: 170 mm, .I.D: 84 mm, O.D: 131 mm
● 1.9/2.0KGS/0.2'
Economy 1.6 Liter Stainless
Steel Pressure Pots
● Max.working pressure 2.4 Bar (35 psi)
● Fluid outlet 3/8"
● Air inlet 1/4"
● Lid & pot made by SUS 304 STAINLESS STEEL
● Lid & pot thickness (6 &1.2 mm )
● Lid outside & inside size (104 & 93 mm)
● Body H: 170 mm, .I.D: 84 mm, O.D: 131 mm
● 1.9/2.0KGS/0.2'
