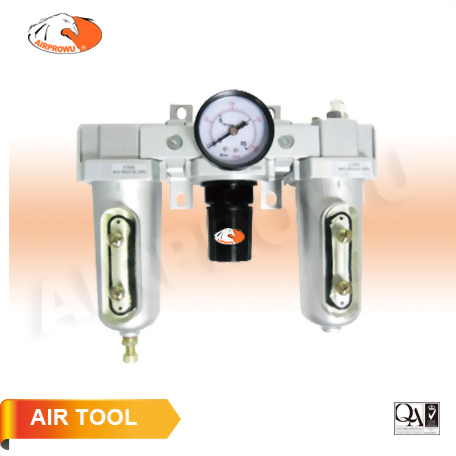

F.R.L. Combinations
modelo :
C704 / CD704 / CM704 / C706 / CD706 / CM706
C704 / CD704 / CM704
C706 / CD706 / CM706
F.R.L. Combinations
● Gauge could be infixed as option for preventing damage and interference.
● Heavy duty type - High Air flow and drain capacity.
● Transparent water level indicator for easy checking.
● Suitable for any high flow air pressure equipment or system.
C706 / CD706 / CM706
F.R.L. Combinations
● Gauge could be infixed as option for preventing damage and interference.
● Heavy duty type - High Air flow and drain capacity.
● Transparent water level indicator for easy checking.
● Suitable for any high flow air pressure equipment or system.
C704 / CD704 / CM704
C706 / CD706 / CM706
F.R.L. Combinations
● Medium: Air
● Max Output Pressure (PSI): 250
● Max Flow (l/min): 7 - 215
● Operating Temperature Range (°C): 5°C - 60°C
● Drain Capacity (ml): 80 ml
● Oil Capacity (ml): 150 ml
● Recommendable Lubricants: ISO VG-32
C704
● Port Size (PT, NPT): 1/2"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: F704 / R704 / L704
CD704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: FD704 / R704 / L704
CM704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Air Filter / Regulator/ Lubricator: FM704 / R704 / L704
C706
● Port Size (PT, NPT): 3/4"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: F706 / R706 / L706
CD706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: FD706 / R706 / L706
CM706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Air Filter / Regulator/ Lubricator: FM706 / R706 / L706
C706 / CD706 / CM706
F.R.L. Combinations
● Medium: Air
● Max Output Pressure (PSI): 250
● Max Flow (l/min): 7 - 215
● Operating Temperature Range (°C): 5°C - 60°C
● Drain Capacity (ml): 80 ml
● Oil Capacity (ml): 150 ml
● Recommendable Lubricants: ISO VG-32
C704
● Port Size (PT, NPT): 1/2"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: F704 / R704 / L704
CD704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: FD704 / R704 / L704
CM704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Air Filter / Regulator/ Lubricator: FM704 / R704 / L704
C706
● Port Size (PT, NPT): 3/4"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: F706 / R706 / L706
CD706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Air Filter / Regulator/ Lubricator: FD706 / R706 / L706
CM706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Air Filter / Regulator/ Lubricator: FM706 / R706 / L706
