High Torque Auto Shut-Off Right Angle Wrenches (General Type)
High Torque Auto Shut-Off Right Angle Wrenches
● Suitable for high precision industry,high torque accuracy.
● The tool will automatically stop when it is locked to the set torque value.
● Maximum torque reaches 120Nm.
● Externally adjustable torque adjustment ring makes it easy to adjust the torque.
● The forward and reverse switch design allows the tool to easily lock and remove screws.
● The elongated ergonomic design makes it easier for the operator to hold and reduces reaction force.
● 90-degree angle design allows operation in narrow spaces.
● Tool performance testing and certification according to VDI/VDE 2647.

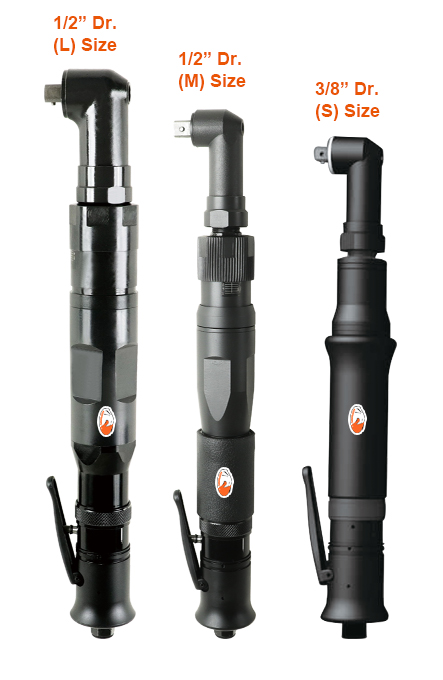

● Specification of bit : 3/8”SQ 、 1/2”SQ. (The standard specification of SA-73000 is 1/2” SQ, which can be changed to 3/8” SQ)
● Machine capability index > 1.67±10% @ according to ISO5393.
● Standard Deviation: ±3%.
High Torque Auto Shut-Off Right Angle Wrenches
SA-ABSF Series (General Type) CMK Value(ISO5393): >1.33 ± 10% , Repeatability: ± 3%
|
Model No. |
Square |
Torque |
Free |
Horse |
Air |
Air |
Noise |
Length |
Net |
Dimensions |
External |
||||
|
四方頭 |
扭力範圍 |
無負載轉速 |
氣管 |
氣壓 |
耗氣量 |
噪音值 |
長度 |
重量 |
A |
B |
C |
D |
E |
||
|
Inch |
Nm |
R.P.M |
mm |
kg/cm2 |
L/s |
dBa |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
||
|
SA-71500ABSF |
3/8 |
6-18 |
700 |
8 |
6 |
9 |
78 |
359 |
1.6 |
28 |
12 |
48 |
86 |
33 |
S |
|
SA-72000ABSF |
3/8 |
10-25 |
430 |
8 |
6 |
9 |
78 |
359 |
1.6 |
28 |
12 |
48 |
86 |
33 |
|
|
SA-72500ABSF |
3/8 |
12-28 |
350 |
8 |
6 |
9 |
78 |
359 |
1.7 |
28 |
12 |
48 |
86 |
33 |
|
|
SA-73000ABSF |
1/2 |
10-40 |
250 |
8 |
6 |
11 |
82 |
400 |
2.3 |
28 |
15 |
51 |
89 |
33 |
M |
|
SA-74000ABSF |
1/2 |
35-60 |
180 |
10 |
6 |
11 |
82 |
400 |
2.3 |
28 |
15 |
51 |
89 |
33 |
|
|
SA-74500ABSF |
1/2 |
35-70 |
130 |
10 |
6 |
11 |
82 |
405 |
2.6 |
35 |
14 |
58 |
94 |
40 |
L |
|
SA-75000ABSF |
1/2 |
40-120 |
100 |
13 |
6 |
11 |
82 |
405 |
2.6 |
35 |
14 |
58 |
94 |
40 |
|
