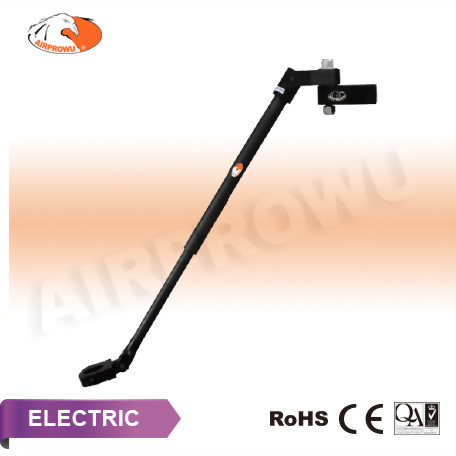

High Torque Telescoping Arm (Hanging Type)
EA-0004A-ZA3 Carbon
High Torque Telescoping Arm
(Hanging Type)
● Telescopic and extreme lightweight arm for a maximum flexibility of use with its
aluminum bracket, the telescopic reaction arm can be fitted to all flat surfaces.
● For fixation on tubes, a circular adaptor is available on request.

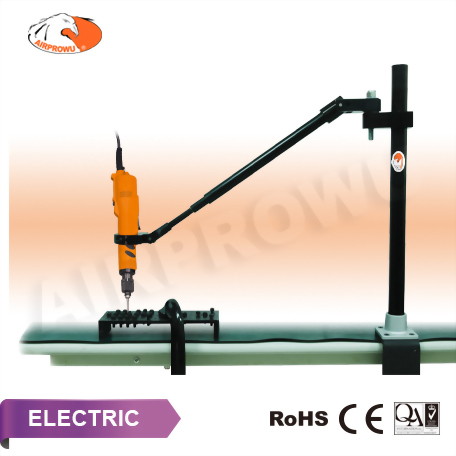

● Fitted on a bench mounted swinging arm with a balancer, the telescopic reaction arm offers an
innovative and efficient solution to minimize operator fatigue and improve productivity.
EA-0004A-ZA3 Carbon
High Torque Telescoping Arm
(Hanging Type)
|
Model No. |
Max.Torque |
Telescopic Length |
Weight |
|||
|
最大扭力 |
伸縮長度 |
重量 |
||||
|
kgf-cm |
Lbf-in |
N-m |
mm |
inch |
kg |
|
|
Telescoping Torque Arm - Aluminum |
||||||
|
EA-0004A-Z3 |
305.91 |
265.52 |
30 |
475 - 1050 |
19.11 - 40.95 |
1.32 |
|
Telescoping Torque Arm - Carbon |
||||||
|
EA-0004A-ZA3 |
509.85 |
442.53 |
50 |
475 - 1050 |
19.11 - 40.95 |
1.1 |
Clamp Option
|
ITEM NO |
Clamp Size |
Clamp Dia |
|
mm |
||
|
1A8004 |
Standard C Type |
Ø36 - Ø45 |
|
1A8005 |
V-Type-Small |
Ø26 - Ø40 |
|
1A8006 |
V-Type-Big |
Ø40 - Ø50 |
