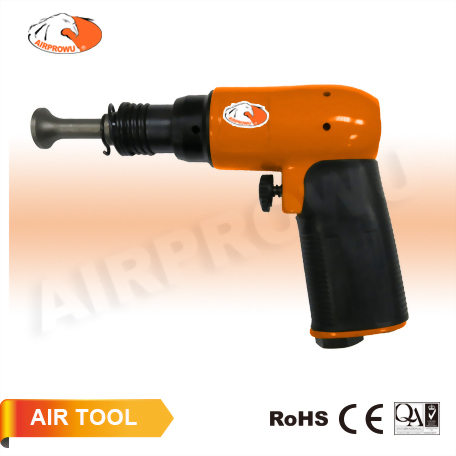

Low Vibration Air Riveting Hammer
SR-9502XPLUS
Low Vibration Air Riveting Hammer
● Blow Per Min: 3,960 BPM
● Streamlined Shape
● Adjustable Air Flow
● Air Cons.: 6 CFM (170 L/min)
● Vibration: <2.5 m/s2
● Sound Power: 104 dB(A)
● Energy Per Blow: 2J
● Riveting Capacity:
(Dural) 3/32"-3/16" (2-5mm),
(Steel) 2/32"-5/32" (1-4mm)
SR-9502XPLUS
Low Vibration Air Riveting Hammer
Model No.
Blows
Bore & Stroke
Chisel
Net
Overall
Air Cons.
Air
打擊次數
缸徑與行程
鑿刀柄徑
重量
長度
耗氣量
進氣口
B.P.M
Inch
mm
Inch
mm
lb
kg
Inch
mm
CFM
L/min
Inch
SR-9502XPLUS
3,960
0.6x1.57
15x40
0.4
10.18
2.2
1.00
7.09
180
90
6.2
1/4"
Per Minute
Shank
Weight
Length
Inlet
