Non Shut-Off Geared Impulse Wrench (Close-End)
Non Shut-Off Geared Impulse Wrench (Close-End)
|

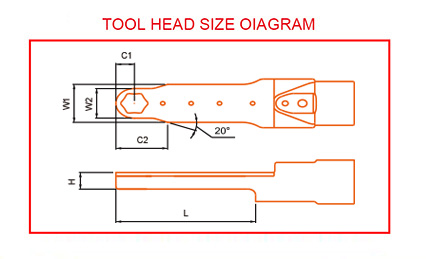

Model No. |
W1 |
W2 |
C1 |
C2 |
L |
H |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
AOBN-70S-3 |
32 |
25 |
12.5 |
35 |
162 |
14 |
Straight Type (Applicable Air Pressure 5 - 6 Bar / 73-87 psi )
|
Model No. |
Across Flat |
Torque Range |
Free |
Length |
Weight |
Air Inlet |
Air Hose |
Air Cons |
Noise |
|
|
螺栓直徑 |
5-6 Bar |
無負載轉速 |
長度 |
重量 |
進氣口 |
氣管 |
耗氣量 |
噪音值 |
||
|
mm |
Inch |
Nm |
R.P.M |
mm |
kg |
PT |
mm |
m3/min |
db(A) |
|
|
AOBN-70S-3 |
8,10,11,12,13 |
3/8", 7/16" |
25 - 30 |
3,000 |
453.2 |
2.25 |
1/4" |
8.0 |
0.45 |
80 |
