Non Shut-Off Geared Impulse Wrench (Open-End)
Non Shut-Off Geared Impulse Wrench (Open-End)
|
Gear Arm No. |
Socket Gear Type |
|
50 |
Through/ Blind Hole Type |
|
60 |
Through/ Blind Hole Type |
|
501 |
Through/ (Extended) Blind Hole Type |
|
502 |
Through/ (Extended) Blind Hole Type |
|
601 |
Through/ Blind Hole Type |
|
60N |
Through/ Blind Hole Type |
|
701 |
Through Hole Type |
|
702 |
Through Hole Type |
Non Shut-Off Geared Impulse Wrench (Open-End)
|

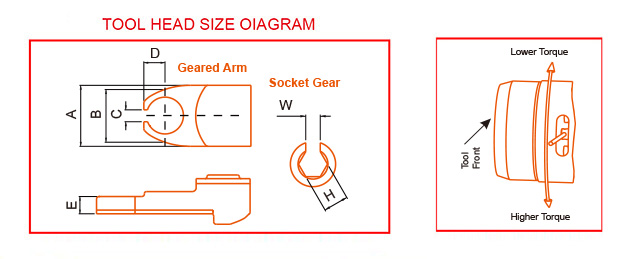

Model No. |
A |
B |
C |
D |
E |
Socket Gear (mm) |
Socket Gear (inch) |
||
|
H |
W |
H |
W |
||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
inch |
mm |
|
|
AOBN-50SW-701 |
58.5 |
50.5 |
20 |
19 |
20 |
21,23,24 |
15,18,18 |
3/4,7/8 |
15,15 |
Straight Type (Applicable Air Pressure 5 - 6 Bar / 73-87 psi )
|
Model No. |
Across Flat |
Torque |
Free |
Length |
Weight |
Air Inlet |
Air Hose |
Air Cons |
Vibration |
Noise |
|
|
螺栓直徑 |
5-6 Bar |
無負載轉速 |
長度 |
重量 |
進氣口 |
氣管 |
耗氣量 |
震動值 |
噪音值 |
||
|
mm |
Inch |
Nm |
R.P.M |
mm |
kg |
PT |
mm |
m3/min |
m/sec2 |
db(A) |
|
|

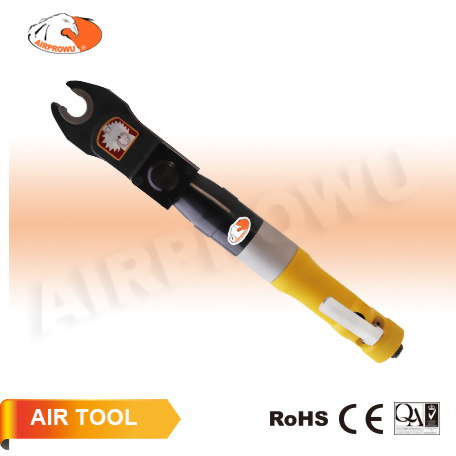

AOBN-50SW-701 |
19,20,21,22,23,24 |
3/4,7/8 |
20 - 28 |
270 - 300 |
394 |
2.49 |
1/4" |
6.5 |
0.40 |
2.0 |
75 |
