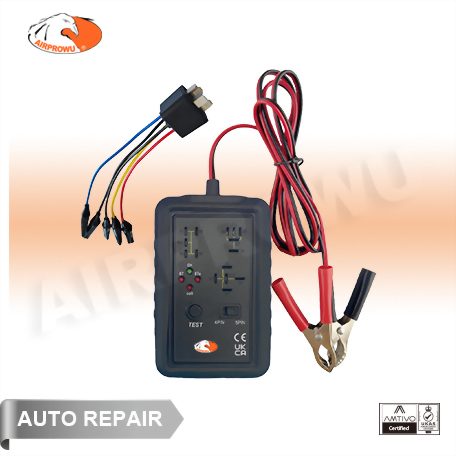

Relay Tester Set
modelo :
ADT-00143K
ADT-00143K NEW 0825
Relay Tester Set
● This is the device to test 3 popular vehicle relays.
● The testing result will be displayed by LED indication.
● Technician is able to use the device to figure out the condition
of the relay, and so speculating the problem in the vehicle.
● Use the relay adapter to plug into the relay tester,
suitable to connection multiple styles relay.
Relay Tester Set
● This is the device to test 3 popular vehicle relays.
● The testing result will be displayed by LED indication.
● Technician is able to use the device to figure out the condition
of the relay, and so speculating the problem in the vehicle.
● Use the relay adapter to plug into the relay tester,
suitable to connection multiple styles relay.
ADT-00143K NEW 0825
Relay Tester Set
● With CE & UKCA Approvals.
● Power Supplied: 12V / 24V vehicle battery.
● Support for 12V / 24V vehicle relay
(12V battery for 12V relay ; 24V battery for 24V relay)
● Support both 4 pin / 5 pin relay.
● Problem pin indication.
● Relay tester adpator included.
● Relay adpator suitable to connection multiple styles relay
● Wire exposed length: 12cm
● Colored wires of pin number for easy identification.
● Working Temperature: 0 - 50°C (32 - 122°F) ; < 85%RH
● Storage Temperature: -20 - 60°C (-4 -140°F) ; < 85%RH
Relay Tester Set
● With CE & UKCA Approvals.
● Power Supplied: 12V / 24V vehicle battery.
● Support for 12V / 24V vehicle relay
(12V battery for 12V relay ; 24V battery for 24V relay)
● Support both 4 pin / 5 pin relay.
● Problem pin indication.
● Relay tester adpator included.
● Relay adpator suitable to connection multiple styles relay
● Wire exposed length: 12cm
● Colored wires of pin number for easy identification.
● Working Temperature: 0 - 50°C (32 - 122°F) ; < 85%RH
● Storage Temperature: -20 - 60°C (-4 -140°F) ; < 85%RH
