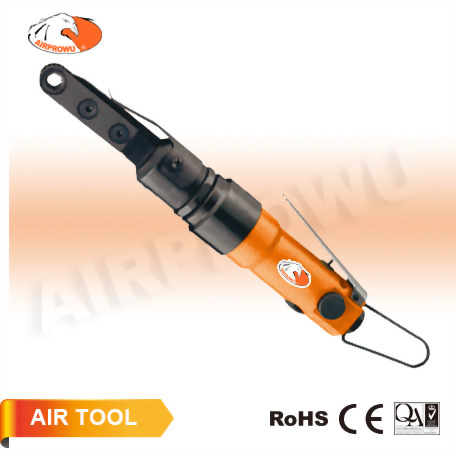

Close-End Air Ratchet Wrench
Close-End Air Ratchet Wrench
● Rear Exhaust
● Bolt Catcher: 6,7,8,9,10,11,12 mm (1/4" , 3/8")
● Working Torque: 7 ft-lb (10 Nm)
|
Model No. |
A |
B |
C |
D |
E |
F |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
SA3701 |
38.2 |
20 |
13.2 |
88.2 |
20.0 |
10.2 |
Close-End Air Ratchet Wrench
|
Model No. |
Hex Size |
Max. |
Free |
Air Cons. |
Overall |
Air Inlet |
Net |
Sound |
||||
|
六角尺寸 |
最大扭力 |
無負載轉速 |
耗氣量 |
長度 |
進氣口 |
重量 |
嗓音值 |
|||||
|
mm |
Nm |
ft-lb |
R.P.M |
CFM |
L/min |
Inch |
mm |
P.T |
lb |
kg |
dBA |
|
|
SA3701 |
6,7,8,10,11,12, |
10 |
7 |
180 |
4.5 |
127 |
11.81 |
300 |
1/4 |
2.87 |
1.30 |
86 |
(Air Pressure at 90 psi, 6.2 bar , 6.3 kg/cm2)
Close-End Air Ratchet Wrench
● The tool can fasten bolts and nuts easily in the narrow spaces,
where other tools cannot reach.
● Remove: Loosen a nut then take out.
● Fasten: Push trigger to position a nut then lock it.
