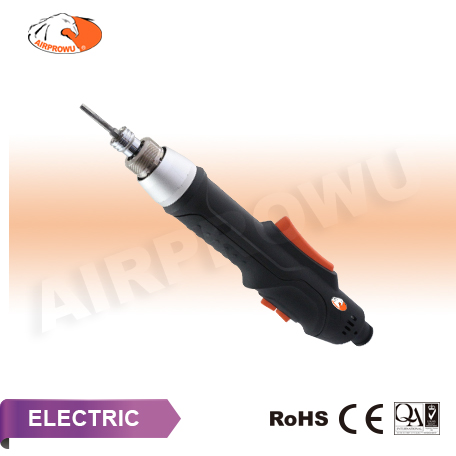

Transducerized DC Electric Torque Control Screwdrivers
modelo :
ESCT-0300P
ESCT-0300P NEW
Transducerized DC Electric Torque
Control Screwdriver
Push To Start Type
● No complex parameter settings are required, making it easy to operate on-site.
● Can setup to tighten 64 different types screws for each job.
● Basic and advanced tightening mode.
● Instant error detection that meets the highest quality requirements.
● Complete and detailed record data, fully integrated with MES systems and ERP systems.
● Equipped with various communication interfaces that comply with industry standards.
(RS232, RS485, Ethernet USB B-Type)
Transducerized DC Electric Torque
Control Screwdriver
Push To Start Type
● No complex parameter settings are required, making it easy to operate on-site.
● Can setup to tighten 64 different types screws for each job.
● Basic and advanced tightening mode.
● Instant error detection that meets the highest quality requirements.
● Complete and detailed record data, fully integrated with MES systems and ERP systems.
● Equipped with various communication interfaces that comply with industry standards.
(RS232, RS485, Ethernet USB B-Type)
ESCT-0300P NEW
Transducerized DC Electric Torque
Control Screwdriver
Push To Start Type
● Position Sensor: Hall Sensor
● Warranty: 1,000,000 cycles/one year
● Available Bit Size: B Type: 6.35(1/4") Hex Shank
Transducerized DC Electric Torque
Control Screwdriver
Push To Start Type
● Position Sensor: Hall Sensor
● Warranty: 1,000,000 cycles/one year
● Available Bit Size: B Type: 6.35(1/4") Hex Shank
|
Model No. |
Torque Range |
Free Speed |
Length |
Handheld O.D. |
Weight |
Precision |
||
|
輸出扭力範圍 |
無負載轉速 |
長度 |
手握直徑 |
重量 |
精準度 |
|||
|
Kgf-cm |
Lbf-in |
N-m |
R.P.M |
mm |
mm |
kg |
- |
|
|
ESCT-0300P |
6.11 - 30.59 |
5.31 - 26.55 |
0.6 - 3.0 |
1000 |
315 |
41 |
0.67 |
±5% |
