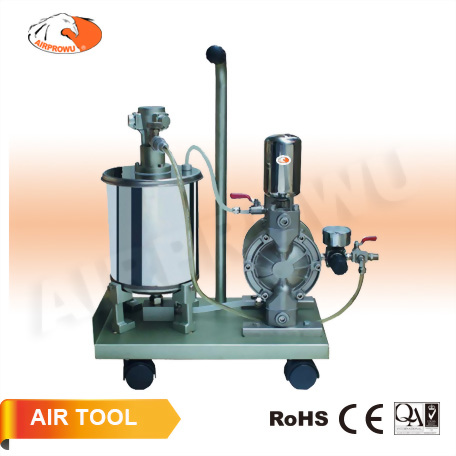

3/8" Double Diaphragm Pump

modelo : HDP-1-5 / HDP-1-10

cantidad :

Descripción
Especificaciones

HDP-1-5 1/12 HP
Double Diaphragm Pump
(w/ Air Motor & 4 Liter Pot)

● Air Motor: 1/12 HP (AM-01)
● Pot Capacity: 4 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 11.5/ 13.1 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE

HDP-1-10 1/12 HP
Double Diaphragm Pump
(w/ Air Motor & 8 Liter Pot)

● Air Motor: 1/12 HP (AM-01)
● Pot Capacity: 8 Liter
● Dimension: 513 x 250 x 600 mm
● Carton: 540 x 260 x 595 mm
● N.W/ G.W/ Cuft: 12.3/ 13.9 KG/ 2.9'
● Certificates: ISO 9001: 2008 /2006 /42 /CE

HDP-1-5 4 L Pot
HDP-1-10 8 L Pot
Double Diaphragm Pump
(w/ 1/12 HP Motor & Pot)

● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2)
10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
