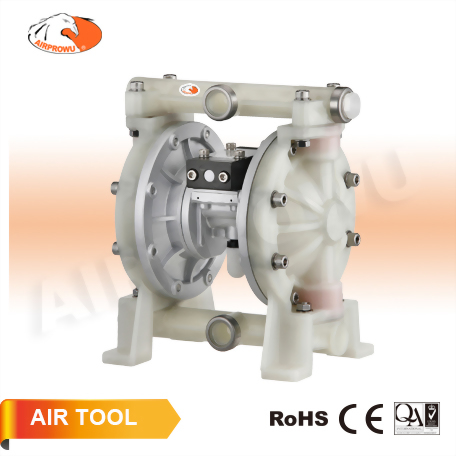

VAP-PP20T
1/2" Double Diaphragm Pump
(Plastic Pump)


● Liquid Inlet & Outlet: 1/2" NPT
● Air Inlet & Outlet: 1/4" NPT
● Material: PTFE
● Wetted & Center Body: PPG & Aluminum
● Pipe Type: Center
● Ball Cover: PP
● Ball: PTFE
● Ball Seat: PP
● Certificates: CE/ Ex II 2 GD c IIB T4~T5

VAP-PP20T
1/2" Double Diaphragm Pump
(Plastic Pump)


● Dimension: (L)29 x (W)20 x (H)30 cm
● Min. Pressure for starting air valve: 1.2 Bar
● Max.Air Supply Pressure: 8.3 Bar (125 psi)
● Air Cons.: 360 L/min (12.71 SCFM)
● Solid Limit: Φ2.0 mm
● Inlet Lift (Deep): 6 m-Wet / 3.7 m-Dry
● Max Flow Rate: 11.08 GPM (42 LPM)
● Weight: 4 kg
