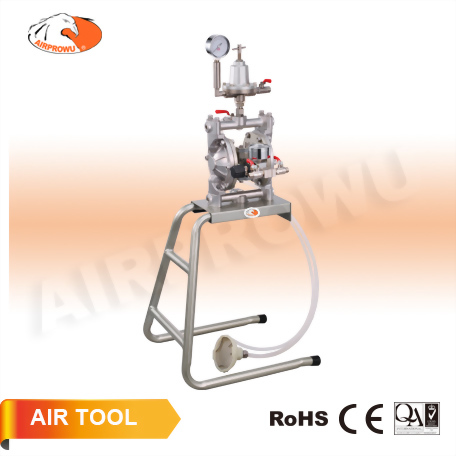

DP-1R
3/8" Double Diaphragm Pump
(w/ Low Pressure Fluid Regulator)


● Dimension: 370 x 315 x 830 mm
● Carton: 390 x 330 x 470 mm
● N.W/ G.W/ Cuft: 7.3/ 8.5 KG/ 2.1'
● Certificates: ISO 9001: 2008 /2006 /42 /CE

DP-1R
3/8" Double Diaphragm Pump
(w/ Low Pressure Fluid Regulator)


● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
                                      7.5 L/min (1.0 kg/cm2)
                                      10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
