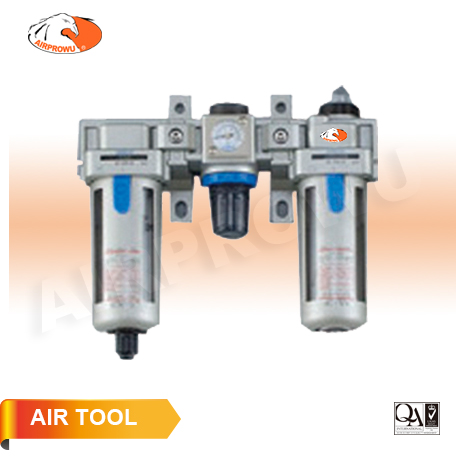

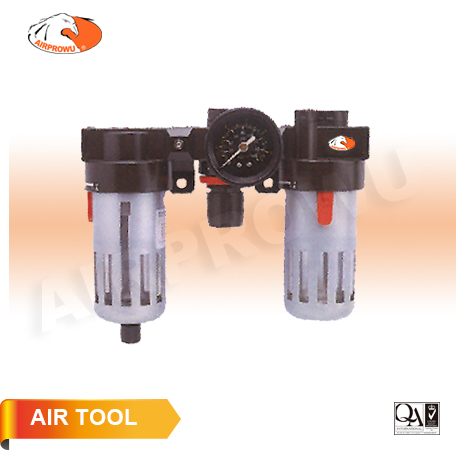

F.R.L. Combination Unit
modelo :
BC / CC Series
BC / CC Series
F.R.L. Combination Unit
● Manual drain:
- BC-200-M 1/4"
- BC-300-M 3/8"
- CC-400-M 1/2"
- CC-600-M 3/4"
● Semi-Auto drain:
- BC-200-SA 1/4"
- BC-300-SA 3/8"
- CC-400-SA 1/2"
- CC-600-SA 3/4"
● Auto drain:
- BC-200-A 1/4"
- BC-300-A 3/8"
- CC-400-A 1/2"
- CC-600-A 3/4"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 0.5 - 8.5
● Max. Service Pressure KGF/cm²: 9.5
● Operating Temp Range °C: 5°C - 60°C
● Recommendable Lubricanats: ISO VG-32
BC-200
● Port Size: PT (NPT): 1/4"
● Max. Flow L / min: 1400
● Drain Capacity CC: 60
● Oil Capacity CC: 90
BC-300
● Port Size: PT (NPT): 3/8"
● Max. Flow L / min: 1400
● Drain Capacity CC: 60
● Oil Capacity CC: 90
CC-400
● Port Size: PT (NPT): 1/2"
● Max. Flow L / min: 3000
● Drain Capacity CC: 100
● Oil Capacity CC: 160
CC-600
● Port Size: PT (NPT): 3/4"
● Max. Flow L / min: 3000
● Drain Capacity CC: 100
● Oil Capacity CC: 160
