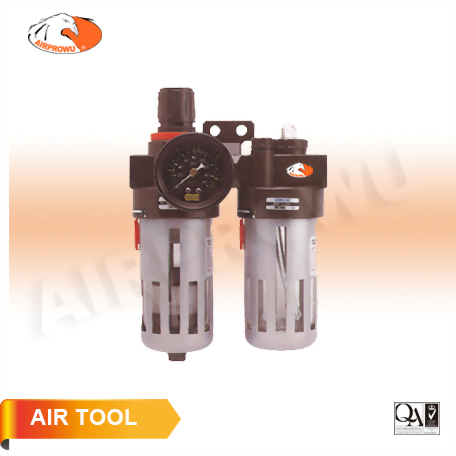

FR.L. Combination Unit
modelo :
BFC / CFC Series
BFC / CFC Series
FR.L. Combination Unit
● Manual drain:
- BFC-200-M 1/4"
- BFC-300-M 3/8"
- CFC-400-M 1/2"
- CFC-600-M 3/4"
● Semi-Auto drain:
- BFC-200-SA 1/4"
- BFC-300-SA 3/8"
- CFC-400-SA 1/2"
- CFC-600-SA 3/4"
● Auto drain:
- BFC-200-A 1/4"
- BFC-300-A 3/8"
- CFC-400-A 1/2"
- CFC-600-A 3/4"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 0.5 - 8.5
● Max. Service Pressure KGF/cm²: 9.5
● Operating Temp Range °C: 5°C - 60°C
● Recommendable Lubricanats: ISO VG-32
BFC-200
● Port Size: PT (NPT): 1/4"
● Max. Flow L / min: 1400
● Drain Capacity CC: 60
● Oil Capacity CC: 90
BFC-300
● Port Size: PT (NPT): 3/8"
● Max. Flow L / min: 1400
● Drain Capacity CC: 60
● Oil Capacity CC: 90
CFC-400
● Port Size: PT (NPT): 1/2"
● Max. Flow L / min: 3000
● Drain Capacity CC: 60
● Oil Capacity CC: 90
CFC-600
● Port Size: PT (NPT): 3/4"
● Max. Flow L / min: 3000
● Drain Capacity CC: 60
● Oil Capacity CC: 90
