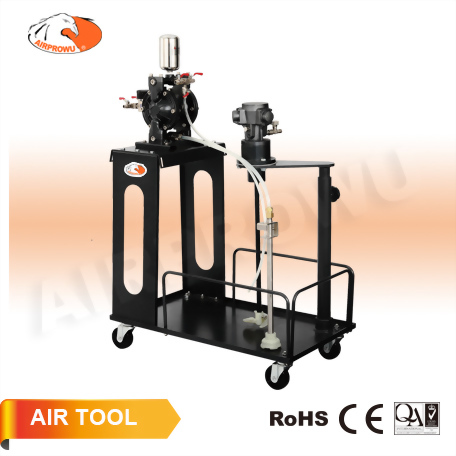

3/8" Double Diaphragm Pump
modelo :
DP-7
DP-7 1/3 HP
3/8" Double Diaphragm Pump
(w/ Air Motor)
● Air Motor: 1/3 HP
AM-02: 1:1 2780 R.P.M.
● Dimension: 750 x 390 x 1000 mm
● Carton: 710 x 410 x 600 mm
● N.W/ G.W/ Cuft: 31.5/ 33.9 KG/ 6.1'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
3/8" Double Diaphragm Pump
(w/ Air Motor)
● Air Motor: 1/3 HP
AM-02: 1:1 2780 R.P.M.
● Dimension: 750 x 390 x 1000 mm
● Carton: 710 x 410 x 600 mm
● N.W/ G.W/ Cuft: 31.5/ 33.9 KG/ 6.1'
● Certificates: ISO 9001: 2008 /2006 /42 /CE
DP-7 1/3 HP
3/8" Double Diaphragm Pump
(w/ Air Motor)
● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2)
10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
3/8" Double Diaphragm Pump
(w/ Air Motor)
● Fluid Inlet & Outlet Dimension: 3/8" PT
● Air Inlet & Outlet Dimension: 1/4" PT
● Pressure Ratio: 1 : 1
● Transmitting Capacity: 5.0 L/min (0.4 kg/cm2)
7.5 L/min (1.0 kg/cm2)
10.5 L/min (2.0 kg/cm2)
● Used Air Pressure: 1~5 kg/cm2
● Max. Painting Pressure: 5 kg/cm2
● Max. Pump Speed: 160 times/min (5 kg/cm2)
● Min. Pump Speed: 80 times/min (0.4 kg/cm2)
● Max. Fluid Temperature: 45°C
● Body Material of Construction: Aluminum
